    Fabric Maintenance of Pipework on FPSO

    Overview

    iasgroup was required to perform a blast, paint and remediation scope on a FPSO in the north west of Western Australia. The FPSO produces around 20,000 - 30,000 barrels of liquids per day and therefore production uptime, asset integrity and safety were of the highest importance to the client.

    The pipework on the asset is exposed to high corrosion rates due to its operating environment. The client required significant life extension to this critical part of the FPSO by firstly working with the iasgroup to develop a condition assessment and repair strategy, and secondly engaging the iasgroup to deliver a prioritised and optimal abrasive blasting, coating and remediation campaign.

    Scope

    The project had the following specifications:

    Structure FPSO
    Application Type Blast, paint and reinstatement
    Operating Environment Offshore
    Quantity 1 - entire produced water system
    Remediation Length 32 linear meters
    Pipe Diameter Majority 300 NB
    Method

    Low Dust Dry Abrasive Blasting - SpongeJetTM

    Protective Coating

    FRP Wrap Repairs

    Solution

    • Condition assessment undertaken to assess pipework integrity
    • Repair strategy developed focusing on priority areas
    • Sponge-Jet TM low dust abrasive blasting to remove existing damaged coating system, rust & contaminants, create a surface cleanliness of Sa 2.5 and a profile of 50 microns

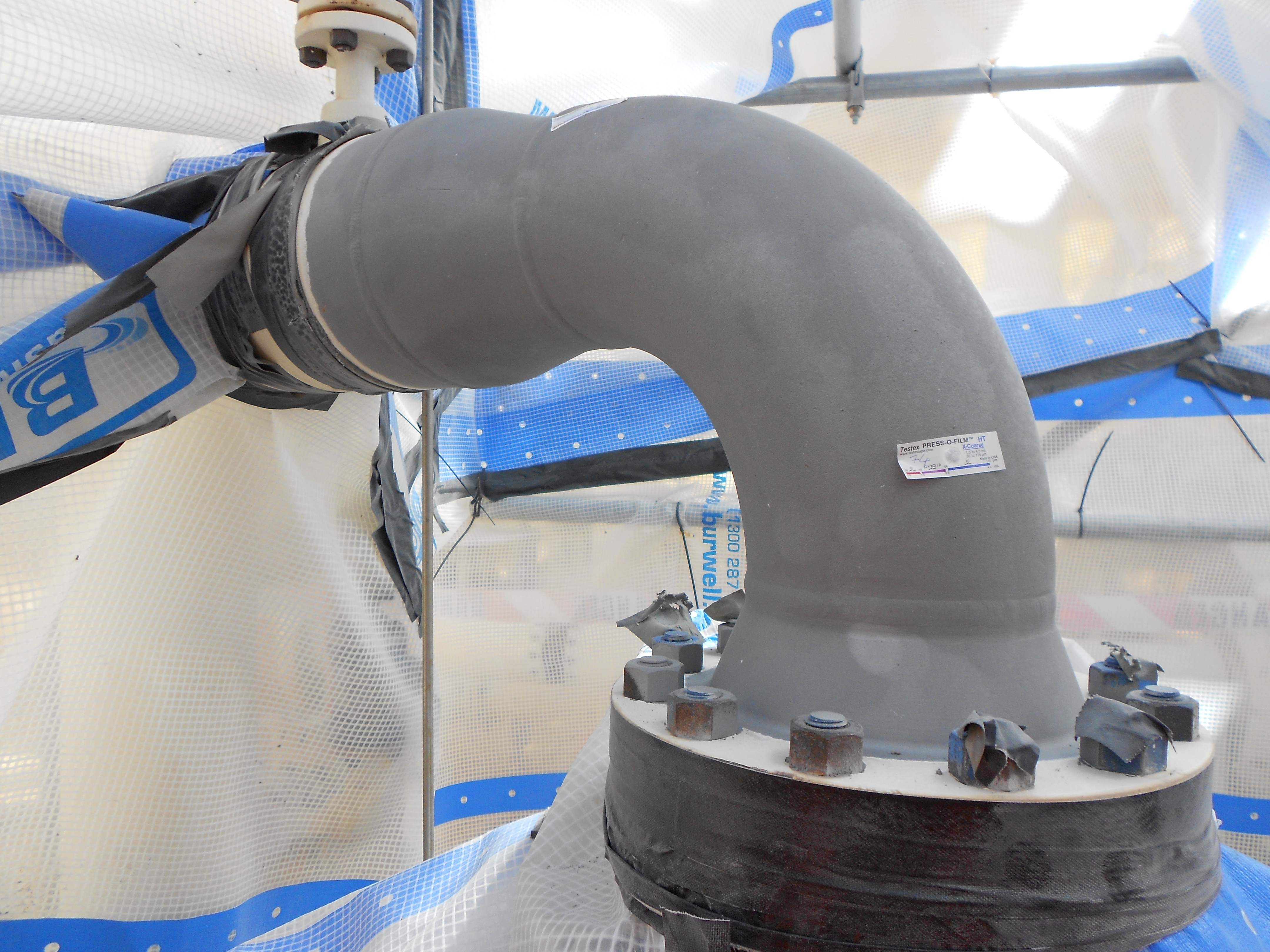

    • Reinstatement of protective coating system

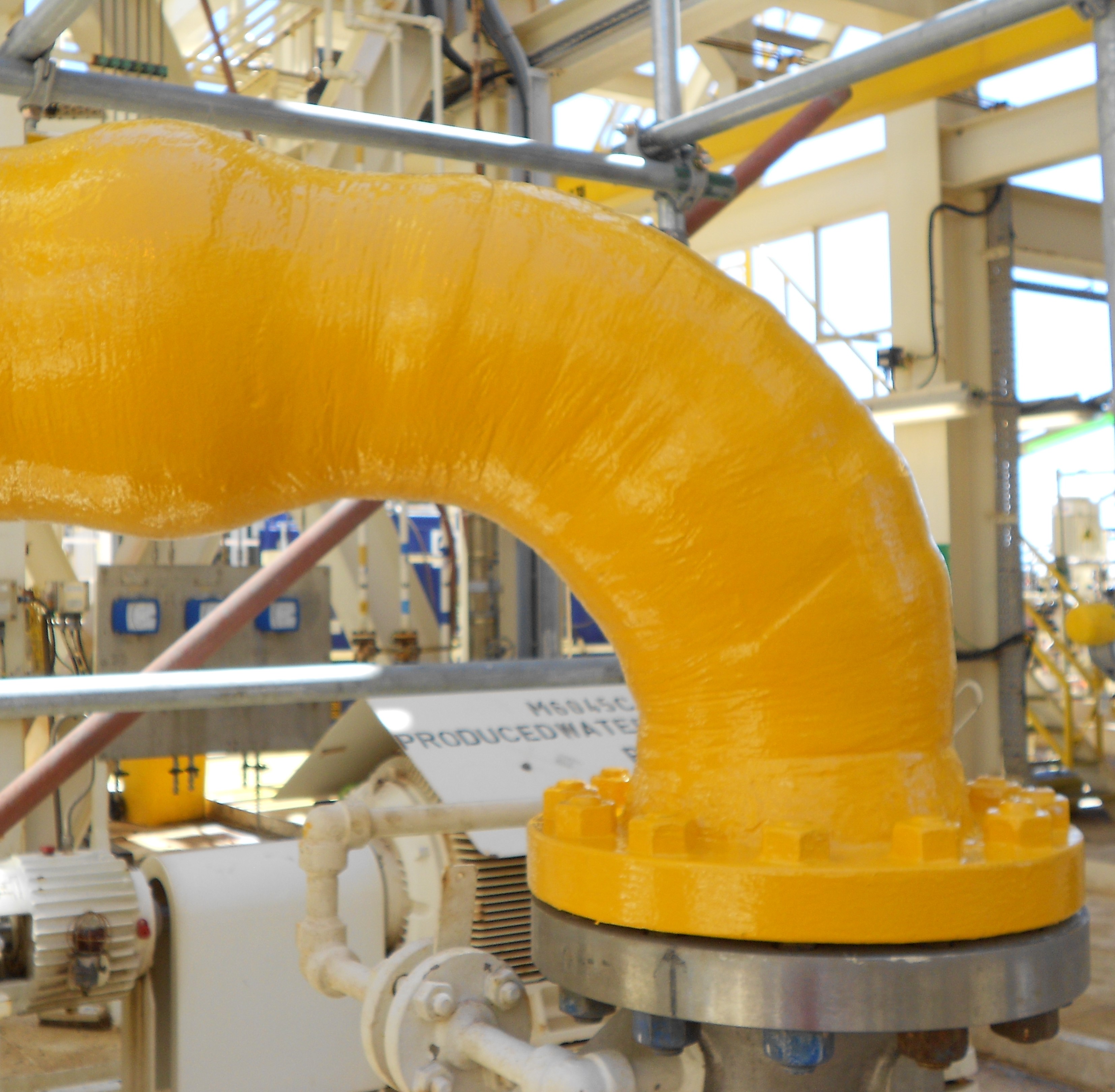

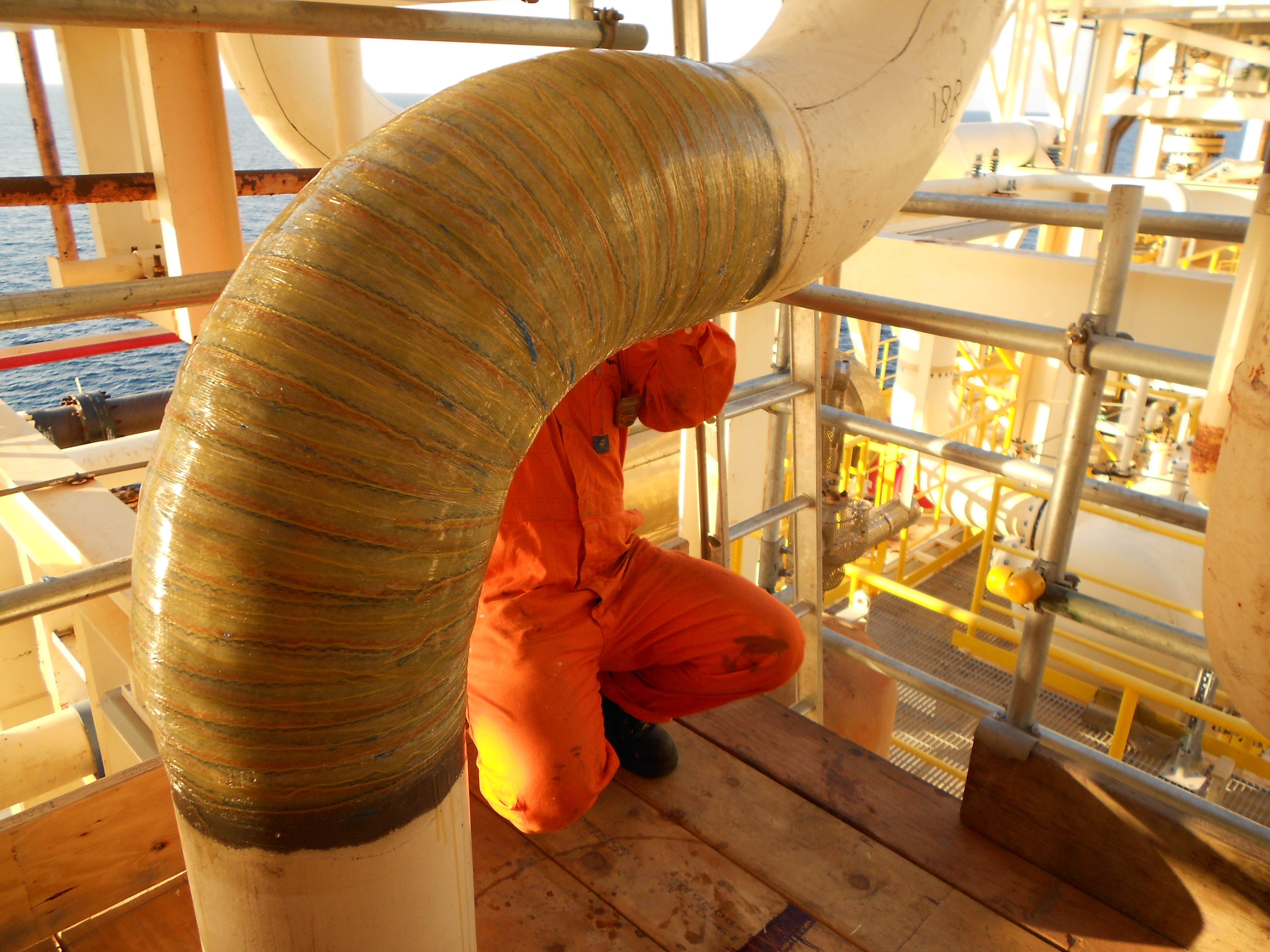

    • Engineered FRP wrap repairs for reinstatement of integrity

    Benefits

    • Multi-disciplined fabric maintenance solution provided 10 year life extension for the client via protective coating and FRP wrap system
    • Sponge-JetTM is a fully recyclable system, reducing waste and freight by 90%, which provided a more cost effective and safer solution, that was more environmentally friendly than traditional blasting with garnet
    • Sponge-JetTM significantly reduces emissions by allowing the ability for other trades to work nearb
    • All works were delivered safely (without incident or accident). No hot work or heavy machinery required
